T / TA

Wheel Saws

Mini excavator Excavator Skid steer loader Front loader Back hoe loader
Intended for skid steer mounting, Simex wheel saws offer different solutions for working on hard or compact surfaces, including asphalt, cement and rock: cuts and small trenches, set-section trenches, mini- and micro-trenches for fiber optic cable installation.  Full wheel protection at any working depth ensures maximum safety of persons and property.
Request information Brochure

Features

  • Clean trench
  • Max. safety
  • High performance
  • High cutting force

Models

T 200

Features mechanical side shift

T 200
T 200
T 200
T 200
Trench width 25-30-40-50 mm 1-1,2-1,6-2 inch
Trench depth 200 mm 8 inch
Operating weight with standard wheel (1) 270 kg 600 lbs
Required oil flow 35-75 l/min 9-20 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 300

Features hydraulic side shift and trench clearing device

T 300
T 300
T 300
T 300
T 300
T 300
Trench width 25-30-50-80 mm 1-1,2-1,6-3,2 inch
Trench depth 300 mm 12 inch
Operating weight with standard wheel (1) 665 kg 1460 lbs
Required oil flow 60-115 l/min 16-30 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

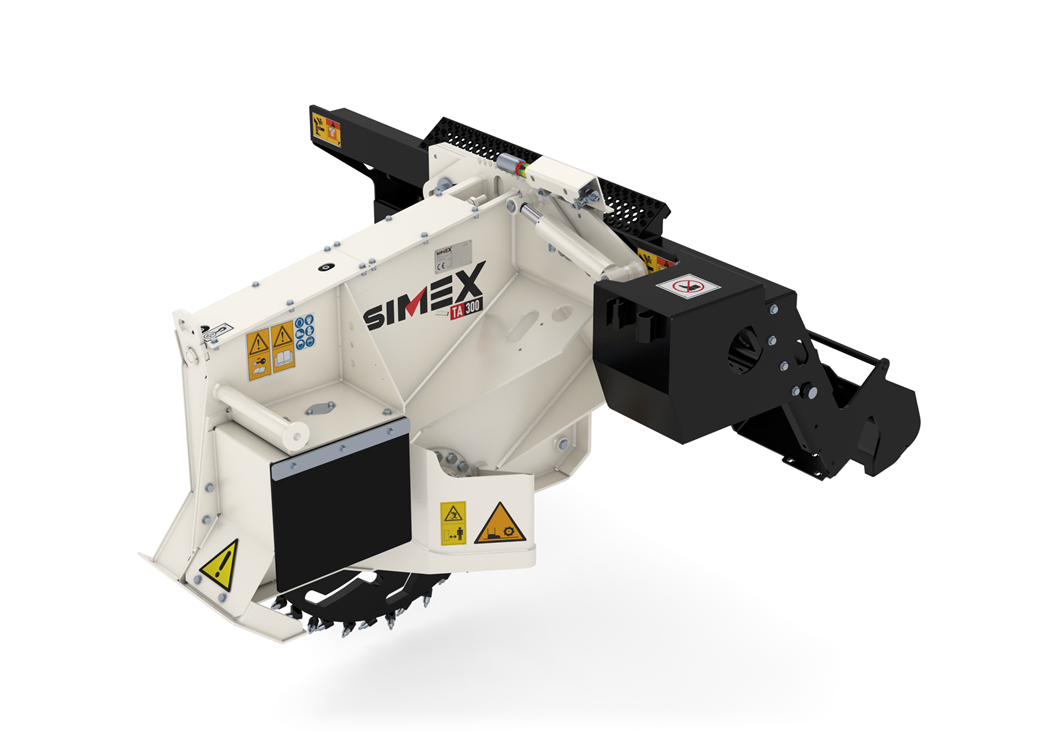

TA 300

Ideal for laying fiber optics, fitted with hydraulic lateral tilt allowing  wheel saw to stay vertical in any condition, even when the prime mover is not parallel to the road surface. Also available with conveyor belt.

TA 300
TA 300
Trench width 25-30-50-80 mm 1-1,2-1,6-3,2 inch
Trench depth 300 mm 12 inch
Operating weight with standard wheel (1) 845 kg 1860 lbs
Required oil flow 60-115 l/min 16-30 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 450

Features hydraulic depth adjustment, hydraulic side shift and trench clearing device. Possibility of side discharge of material. Set up for installation of aspiration and conveyor belt.


T 450
T 450
T 450
T 450
Trench width 50-80-100-130-160-200 mm 1,6-3,2-4-5-6,3-8 inch
Trench depth 150-450 mm 6-17 inch
Operating weight with standard wheel (1) 1115 kg 2450 lbs
Required oil flow 100-160 l/min 27-42 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 600

Hydraulic depth adjustment, hydraulic side shift, trench clearing device,  side discharge of material. Set up for installation of aspiration and conveyor belt.


T 600
T 600
T 600
T 600
T 600
T 600
T 600
T 600
Trench width 80-100-130-160-200 mm 3,2-4-5-6,3-8 inch
Trench depth 200-600 mm 8-24 inch
Operating weight with standard wheel (1) 1340 kg 2950 lbs
Required oil flow 110-170 l/min 29-45 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 800

Compared to the other models of the T range, the T 800 is fitted with an integrated motor in the wheel that enters the trench and goes down to a depth of 800mm without excessively increasing the wheel diameter. The T 800 is also the only one that can work in reverse.
T 800
T 800
T 800
T 800
T 800
T 800
T 800
T 800
Trench width 250 mm 10 inch
Trench depth 450-800 mm 17-31 inch
Operating weight with standard wheel (1) 1430 kg 3150 lbs
Required oil flow 110-170 l/min 29-50 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close
For more information on our attachments, feel free to contact us. We’ll be pleased to respond to any of your requests.
Contact us now

Related news about Wheel Saws (T / TA)

Mini and micro-trenching: more than 15 models of wheel saws available
Fiber optic networks: Simex at the forefront of the development of new solutions for mini and micro-trenching. More than 15 models of wheel saws for loaders, compact loaders or excavators.

News
The Utility Expo 2023: Simex quality starts from road maintenance and utilities equipment
For the first time, Simex North America is attending the Utility Expo 2023, demonstrating the company's commitment to expand the business in the utility sector, with a clear strategy for penetrating the North American market.

September 26-28, 2023 - Louisville, KY, USA - Lot E Booth 1316
Events
Simex's way to Conexpo Con/Agg 2023
This edition of Conexpo Con/Agg will mark a step change in Simex's approach to sales in the US market.

14-18 March, 2023, West Hall, Booth W43273
Events
Commercial breakthrough for Simex in the US
The entire Simex range for road maintenance and underground utilities is now available on the American market.

Simex at Conexpo Con/Agg, Las Vegas (NV), 14-18 March 2023. WEST HALL, BOOTH W43273.
News
No-Dig technologies: Simex mini and micro-trenching solutions
Fiber optic networks: Simex at the forefront of the development of new solutions for mini and micro-trenching.

News
Wheel saw T 300 with a 25 mm disk width
Simex T 300, wheel saw with a 25 mm disk for fiber optics mini-trenching
Videos
Simex TA 300 wheel saw: a little champion of productivity
The Simex TA 300 wheel saw can excavate mini-trenches with depths from 200-300 mm, and thanks to the conveyor and scraper it leaves the trench clear and clean
News

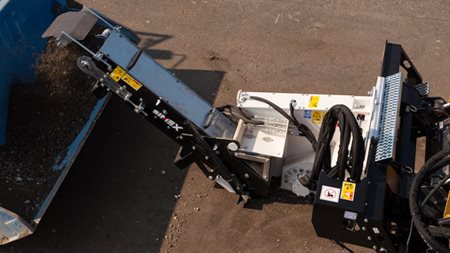

Simex TA 300 wheel saw for skid steer loader - application: trenching
