Utilities

Utilities

Simex offers a range of attachments for excavating and backfilling trenches for different types of utilities installation, such as fiber optics, piping or conduits.  From creating set-section trenches to compaction, Simex products offer high-performing solutions for any application requirement.

Request information

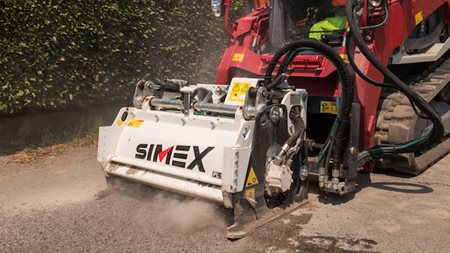

PL 40.25 SG

Intended for mounting on front loaders and skid steer loaders. Designed to remove layers of asphalt or cement under the guard rail.  Adjustable milling depth.
Available in version with conveyor belt for removing material from trench. Interchangeable milling drums in different widths available on request.

PL 40.25 SG
PL 40.25 SG
PL 40.25 SG
PL 40.25 SG
PL 40.25 SG
PL 40.25 SG
Standard drum width 350 mm 14 inch
Depth 0-150 mm 0-6 inch
Required oil flow 75-140 l/min 18-38 gpm
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information Scarica scheda PDF
Close

TF 200

TF 200
TF 200
TF 200
TF 200
TF 200
TF 200
TF 200
TF 200
Recommended excavator weight (1) 2,5-7 ton 5500-15500 lbs
Weight without bracket  300 kg 660 lbs
Drum width (standard) 565 mm 22 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFC 50

TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
Width (cutting profile) 370 mm 15 inch
Weight (1) 90 kg 200 lbs
Recommended excavator weight (2) 1,2-3,0 ton 2640-6600 lbs
(1) Without mounting bracket to boom.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

PV 300

PV 300
PV 300
PV 300
PV 300
PV 300
PV 300
PV 300
PV 300
Recommended excavator weight 1,5-5 ton 3300-11000 lbs
Plate dimensions 290x710  mm 11x28 inch
Weight without bracket (1) 190 kg 420 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

​Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

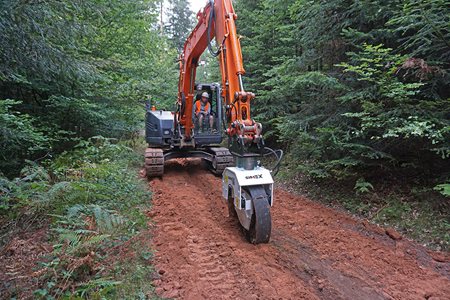

CT 2.8 B

CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
CT 2.8 B
Recommended excavator weight (1) 5-12 ton 11000-26500 lbs
Width of bolted sectors 150-200-250-300-250-400 mm 6-8-10-12-14-16 inch
Working depth 0-700 mm 0-28 inch
Operating weight (2) 530-585 kg 1160-1300 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the attachment.
(2) Widths different from those indicated are available on request.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CT 2.8 STANDARD

Width of bolted sectors 150-200-250-350-400 mm 6-8-10-12-14-16 inch
Working depth 0-700 mm 0-27 inch
Max. vertical force 42 kN 9400 lbf
Required oil flow 40-50 l/min 11-13 gpm
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

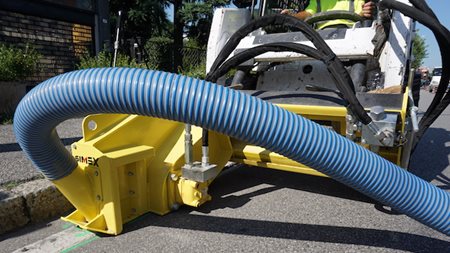

T 200

Features mechanical side shift

T 200
T 200
T 200
T 200
Trench width 25-30-40-50 mm 1-1,2-1,6-2 inch
Trench depth 200 mm 8 inch
Operating weight with standard wheel (1) 270 kg 600 lbs
Required oil flow 35-75 l/min 9-20 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

RS 16 STANDARD

RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
RS 16 STANDARD
Rumble strip width (1) 300-350-400mm 12-14-16 inch
Rumble strip depth (1) 0-25 mm 0-1 inch
Required oil flow 75-140 l/min 20-37 gpm
(1) Standard dimensions – custom dimensions on request.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice
These are the standard features, for custom solutions contact us.
Request for information
Close

TFV 400

TFV 400
TFV 400
Recommended excavator weight (1) 7-12 ton 15400-26400 lbs
Diameter 380 mm 15 inch
Operating weight (2) 245 kg 540 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 90S

Per terreni morbidi.
CHD 90S
CHD 90S
CHD 90S
CHD 90S
Maximum trench depth 900 mm 35 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm 4-8 inch
Operating weight (1) 280 kg 617 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 90S B

For soft soils.
Maximum trench depth 900 mm 35 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm 4-8 inch
Operating weight (1)(2) 260 kg 570 lbs
Recommended excavator weight 2,5-4,5 ton 5500-9900 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

PL 40.25 RAIL

Studied for creating one or two small trenches at sides of rail tracks to be filled later with sound-insulating material.
Fitted with two guide wheels positioned at front and rear of milling disks that run on the rail to guarantee maximum precision.
Wheels available in different forms and sections for different rail profiles.
Interchangeable milling disks in different widths available on request.
PL 40.25 RAIL
PL 40.25 RAIL
Standard drum width 30-40-50-60 mm 1,2-1,6-2-2,4 inch
Depth 0-70 mm 0-2,75 inch
Required oil flow 75-115 l/min 20-30 gpm
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information Scarica scheda PDF
Close

TF 400

TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
Recommended excavator weight (1) 6-12 ton 13000-26500 lbs
Weight without bracket 470 kg 1050 lbs
Drum width (standard) 625 mm 25 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFC 100

TFC 100
TFC 100
TFC 100
TFC 100
TFC 100
TFC 100
Width (cutting profile) 480-430 mm 19-17 inch
Weight (1) 170 kg 374 lbs
Recommended excavator weight (2) 2,5-4,5 ton 5600-9900 lbs
(1) Without mounting bracket to boom.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

PV 450

PV 450
PV 450
PV 450
PV 450
PV 450
PV 450
PV 450
PV 450
Recommended excavator weight 4-10 ton 8800-22000 lbs
Plate dimensions 440x710  mm 17x28 inch
Weight without bracket (1) 300 kg 660 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

​Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CT 2.8 F.O.

The CT 2.8 Full Optional permits lateral extension outside the wheel of the prime mover for working on roadsides or near walls and curbs.

CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
CT 2.8 F.O.
Width of bolted sectors 150-200-250-350-400 mm 6-8-10-12-14-16 inch
Working depth 0-700 mm 0-27 inch
Max. vertical force 42 kN 9400 lbf
Required oil flow 50-70 l/min 13-18 gpm
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 300

Features hydraulic side shift and trench clearing device

T 300
T 300
T 300
T 300
T 300
T 300
Trench width 25-30-50-80 mm 1-1,2-1,6-3,2 inch
Trench depth 300 mm 12 inch
Operating weight with standard wheel (1) 665 kg 1460 lbs
Required oil flow 60-115 l/min 16-30 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFV 600

TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
Recommended excavator weight (1) 10-18 ton 22000-39600 lbs
Diameter 420 mm 17 inch
Operating weight (2) 400 kg 880 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

RWE 20

RWE 20
RWE 20
Recommended excavator weight (1) 2,5-5 ton 5500-11000 lbs
Depth 200 mm 8 inch
Required oil flow 30-75 l/min 8-20 gpm
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

​Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120S

Per terreni morbidi.
Maximum trench depth 1200 mm 47 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm  4-8 inch
Operating weight (1) 425 kg 936 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120S B

For soft soils.
Maximum trench depth 1200 mm 47 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm 4-8 inch
Operating weight (1)(2) 425 kg 936 lbs
Recommended excavator weight 4,5-8 ton 9900-17600 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 650

TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
Recommended excavator weight (1) 9-16 ton 19800-35200 lbs
Weight without bracket 650 kg 1430 lbs
Drum width (standard) 700 mm 28 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFC 400

TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
Width (cutting profile) 480-430 mm 19-17 inch
Weight (1) 400 kg 8800 lbs
Recommended excavator weight (2) 6-10 ton 13000-22000 lbs
(1) Without mounting bracket to boom.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information Scarica scheda PDF
Close

VSE 10

VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
Recommended excavator weight (1)(2) 8-13 ton 17500-29000 lbs
Bucket capacity (SAE) 0,40 m3 0,52 yd3
Operating weight (3) 965 kg 2125 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

PV 600

PV 600
PV 600
PV 600
PV 600
PV 600
PV 600
PV 600
PV 600
Recommended excavator weight 6-15 ton 13000-33000 lbs
Plate dimensions 550x890  mm 22x35 inch
Weight without bracket (1) 410 kg 900 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

​Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TA 300

Ideal for laying fiber optics, fitted with hydraulic lateral tilt allowing  wheel saw to stay vertical in any condition, even when the prime mover is not parallel to the road surface. Also available with conveyor belt.

TA 300
TA 300
Trench width 25-30-50-80 mm 1-1,2-1,6-3,2 inch
Trench depth 300 mm 12 inch
Operating weight with standard wheel (1) 845 kg 1860 lbs
Required oil flow 60-115 l/min 16-30 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 90

For mixed soils.
CHD 90
CHD 90
Max. trench depth 900 mm 35 inch
Trench width - standard 150 mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1) 715 kg 1575 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

ST 200

Fitted with side shift and side plates for conveying material that are hydraulically adjustable with open-close mechanical device. They can lay asphalt on sidewalks or widen the roadway without the prime mover passing over the spread material since they can work totally offset the machine.

ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
ST 200
Peso operativo (1) 675 kg 1485 lbs
Portata olio richiesta 45 l/min 12 gpm
Pressione olio 200 BAR 2900 psi
Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFV 850

TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
Recommended excavator weight (1) 15-25 ton 33000-55000 lbs
Diameter 450 mm 18 inch
Operating weight (2) 570 kg 1255 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

RWE 30

RWE 30
RWE 30
RWE 30
RWE 30
RWE 30
RWE 30
Recommended excavator weight (1) 5-10 ton 11000-22000 lbs
Depth 300 mm 12 inch
Required oil flow 60-120 l/min 16-32 gpm
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

​Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 850

TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
Recommended excavator weight (1) 14-22 ton 30800-48500 lbs
Weight without bracket 1100 kg 2420 lbs
Drum width (standard) 800 mm 32 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

VSE 20

VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
Recommended excavator weight (1)(2) 12-18 ton 26000-40000 lbs
Bucket capacity (SAE) 0,70 m3 0,92 yd3
Operating weight (3) 1400 kg 3080 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

PV 700

PV 700
PV 700
PV 700
PV 700
Recommended excavator weight 12-25 ton 26400-55000 lbs
Plate dimensions 710x1160  mm 28x45 inch
Weight without bracket (1) 875 kg 1925 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

​Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 450

Features hydraulic depth adjustment, hydraulic side shift and trench clearing device. Possibility of side discharge of material. Set up for installation of aspiration and conveyor belt.


T 450
T 450
T 450
T 450
Trench width 50-80-100-130-160-200 mm 1,6-3,2-4-5-6,3-8 inch
Trench depth 150-450 mm 6-17 inch
Operating weight with standard wheel (1) 1115 kg 2450 lbs
Required oil flow 100-160 l/min 27-42 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120

For mixed soils.
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
Max. trench depth 1200 mm 47 inch
Trench width - standard 150 mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1) 780 kg 1715 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120B

For mixed soils.
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
Max. trench depth 1200 mm 47 inch
Trench width - standard 150  mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1)(2) 590 kg 1300 lbs
Recommended excavator size 8-15 ton 17600-33000 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 1100

TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
Recommended excavator weight (1) 20-34 ton 44000-80000 lbs
Weight without bracket  1340 kg 2950 lbs
Drum width (standard) 850 mm 34 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

VSE 30

VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
Recommended excavator weight (1)(2) 16-30 ton 35000-66000 lbs
Bucket capacity (SAE) 1,00 m3 1,30 yd3
Operating weight (3) 1845 kg 4060 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

PV 850

PV 850
PV 850
Recommended excavator weight 20-40 ton 44000-88000 lbs
Plate dimensions 860x1110  mm 34x44 inch
Weight without bracket (1) 1040 kg 2300 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 150

For mixed soils.
CHD 150
CHD 150
Max. trench depth 1500 mm 59 inch
Trench width - standard 150 mm 6 inch
Trench width - optional 200 mm 8 inch
Operating weight (1) 830 kg 1830 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

RWE 50

Segmented wheel: Disk with removable, interchangeable segments allows quick variation of the trench width while maintaining the same base wheel.
RWE 50
RWE 50
RWE 50
RWE 50
RWE 50
RWE 50
Recommended excavator weight (1) 14-18 ton 28000-39800 lbs
Depth 300-500 mm 12-20 inch
Required oil flow 100-160 l/min 26-42 gpm
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 150B

For mixed soils.
CHD 150B
CHD 150B
Max. trench depth 1500 mm 59 inch
Trench width - standard 150  mm 6 inch
Trench width - optional 200 mm 8 inch
Operating weight (1)(2) 640 kg 1410 lbs
Recommended excavator size 8-15 ton 17600-33000 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 2100

TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
Recommended excavator weight (1) 28-45 ton 61700-99000 lbs
Weight without bracket 2380 kg 5240 lbs
Drum width (standard) 950 mm 38 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

VSE 40

VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
Recommended excavator weight (1)(2) 30-45 ton 66000-99000 lbs
Bucket capacity (SAE) 1,80 m3 2,35 yd3
Operating weight (3) 2725 kg 6000 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 600

Hydraulic depth adjustment, hydraulic side shift, trench clearing device,  side discharge of material. Set up for installation of aspiration and conveyor belt.


T 600
T 600
T 600
T 600
T 600
T 600
T 600
T 600
Trench width 80-100-130-160-200 mm 3,2-4-5-6,3-8 inch
Trench depth 200-600 mm 8-24 inch
Operating weight with standard wheel (1) 1340 kg 2950 lbs
Required oil flow 110-170 l/min 29-45 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 2500

TF 2500
TF 2500
Recommended excavator weight (1) 40-55 ton 88000-121000 lbs
Weight without bracket 2700 kg 5950 lbs
Drum width (HP) 1000 mm 40 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 3100

TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
Recommended excavator weight (1) 50-70 ton 110000-154000 lbs
Weight without bracket  2940 kg 6470 lbs
Drum width (standard) 1250 mm 50 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 800

Compared to the other models of the T range, the T 800 is fitted with an integrated motor in the wheel that enters the trench and goes down to a depth of 800mm without excessively increasing the wheel diameter. The T 800 is also the only one that can work in reverse.
T 800
T 800
T 800
T 800
T 800
T 800
T 800
T 800
Trench width 250 mm 10 inch
Trench depth 450-800 mm 17-31 inch
Operating weight with standard wheel (1) 1430 kg 3150 lbs
Required oil flow 110-170 l/min 29-50 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close
For more information on our attachments, feel free to contact us. We’ll be pleased to respond to any of your requests.
Contact us now

Related news about Utilities

A new wheel saw model from Simex
The new RWA 700 wheel saw combines the great performance and productivity of the wheel cutters for in-line excavation, with the precision of small-section cuts for fiber optic cables installation.
Videos
Simex reaches 700 mm depth with a new wheel saw
700 mm depth and hydraulic lateral inclination, mounting wheels with interchangeable sectors for widths from 80 to 120 mm. Great performance while remaining in the field of equipment for compact machines: Simex launches the RWA 700 wheel saw.
News
Backfilling pipelines with VSE 30 screening bucket
In backfilling operations for covering underground utilities, particularly in the Oil&Gas industry, the instant adjustment of the output size brings great benefits in terms of time saving and costs cutting.
Videos
RW 350 wheel saw: micro-trenching for fiber optics
For laying the optical fiber in the final connection to the buildings an Italian company relied on the RW 350 wheel saw trencher, mounting a 30 mm wide cutting disc.
News
ASPHALTICA: 24-26 November, 2021
Simex will be at Asphaltica 2021, that will be held from Wednesday 24 to Friday 26 November at Verona Fiere, Italy. Meet us at Hall 11, Stand F3.

Events
VSE screening buckets: padding pipelines and backfilling trenches
The advantages of padding operations with Simex VSE screening buckets.
News
Simex CT 2.8 guarantee a well compacted bottom
Designed for compacting trench bottoms, Simex CT vibrating wheel compactors guarantee a permanently solid, even and well compacted bottom that ensures maximum road safety.
Videos
Excavation works for laying drainage pipes along Shanghai subway
Simex, thanks to the collaboration with its official importer ATE, has introduced in the Chinese market the TF drum cutters technology, as trusted alternative or support to traditional excavation methods.
Videos
Trenching for drainage pipes along Shanghai subway.
Through our importer ATE, Shanghai Costruction Group (SCG) has tried a Simex TF 850 double-drum cutter head within excavation works for laying underground drainage pipes along Shanghai subway.

News
VSE 10, selecting materials for backfilling trenches
Simex VSE 10 screening bucket used for selecting waste material from a construction site for backfilling water pipes trenches.
Videos
New Simex wheel saws for the final link of the optical fiber
Simex has launched a new wheel saw specifically designed for the excavation of micro trenches for the laying of the optical fiber. Versatile and compact, it can be mounted on mini-excavators and skid steer loaders.
News
Cutter heads in India - Trenching for laying of pipelines
In Dwarka, in the state of Gujarat, the contractor COMACOE (Coastal Marine Construction & Engineering Ltd) dug a trench with our TF 3100 drum cutter, for laying a pipeline to convey seawater to a desalination plant in order to solve the big drought problems of the area.
Videos
Simex PV vibrating plate compactors
Designed to compact any surface, Simex PV vibrating plate compactors are an excellent solution for achieving a solid, even, and well compacted bottom that will never give way.
Videos
Simex TF 850: cutter heads for trenching operations in France
Simex TF 850 double-drum cutter heads video: trenching for sewerage installation in France.
Videos
Simex TF 850, double-drum cutter heads: trenching in France
Jean Roger, an earthmoving company based in Bédarieux (FR) used a Simex drum cutter TF 850 to create trenches for a sewerage installation.
News
TFC 400 published on "Strade & Autostrade"
Last January, TFC 400 has won in Verona the SAMOTER Innovation Award for the attachments category.
News
Simex TA 300 wheel saw: a little champion of productivity
The Simex TA 300 wheel saw can excavate mini-trenches with depths from 200-300 mm, and thanks to the conveyor and scraper it leaves the trench clear and clean
News
Simex PL 5020 self-leveling planer for skid steer loader - road milling application
Last summer in Ortisei (Italy) the Simex PL 5020 self-levelling planer gave proof of its performance on a milling application in the town's historical center where a tracked planer could not be...
Videos
A special T 200 for fiber optics
In Milan a T 200 wheel saw fitted with suction system used by Sirti to create the fiber optic network is helping to bring down costs down and reduce completion times.
News
Simex PL 1000: Water supply maintenance benefits from planer performance
A Simex PL 1000 self-levveling planer is used with high effectiveness in works to repair water supply and sewer networks.
News
A very special Simex PLB 200 planer for excavator
Falf, a company based in Savigliano (Cuneo, Italy) specialized in pavement maintenance and the creation of utilities and district heating plants is using a PLB 200 planer for excavator mounted on a Cat 301.7D mini excavator with great success. The attachment, purchased through CGT Edilizia, is equipped with a special disk with a width of 30 mm and a depth of 70 mm.
News
The new TFC 400 and TFC 600 drum cutters
The new TFC 400 and TFC 600 continuous cutting double drum cutter heads now part of the large family of Simex cutter heads currently including 11 models of the TF, TFC and TFV series.
News
Simex VSE Screening Buckets
Which are the main features and advantages of Simex VSE Screening Buckets? Let's find out
News
More news

Request information

Fields marked with (*) are mandatory.
Sort by: Name Date Size
asso_aemasso_araasso_ara_aedasso_assodimiasso_confindustriaasso_sitebasso_unaceaasso_uniiatt
